12 Fibers Single Mode Color Coded Fiber Optic Pigtail for High-Speed Data Transmission

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

LC Pigtail

Diameter:

0.09mm

Model:

Single

Connector:

Color:

Option

Length:

1 Meter

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

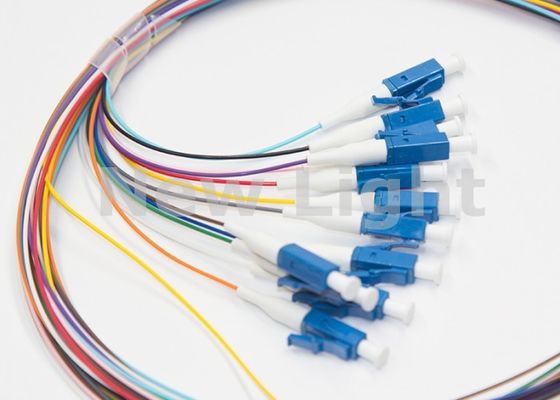

LC/UPC SM 12 Core Single Mode Fiber Optic Cable Color Coded Fiber Optic Pigtail

1M (3ft) 12 Fibers LC/UPC SM Single-Mode Color-Coded Fiber Optic Pigtail

Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.

We provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.

Specifications

Connector A	LC
Connector B	Unterminated
Fiber Mode	9/125µm
Fiber Count	12
Polish	UPC
Cable Diameter	0.9mm
Wavelength	1310nm/1550nm
Pigtail Color	12 color
Insertion Loss	≤0.3dB
Interchangeability	≤0.2dB
Return Loss	≥50dB
Vibration	≤0.2dB
Operating Temperature	-40~75℃
Storage Temperature	-45~85℃

Features

Simplex and duplex connector available
High precision of mechanical dimensions
Good exchange ability and good durability
Low Insertion Loss, High temperature Stability and Good exchangeability
Fan-out Available, Pigtail Available, Various Boot(cable) Size Available

Applications

Optical fiber communication system
Optical fiber test equipment
Optical fiber access network
Optical fiber sensor
Optical fiber CATV system
Optical fiber data transmission
Local area network
