LC to LC Single Mode Fiber Patch Cable with 2.0mm Diameter and Good Exchangeability

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

LC-LC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

LC-LC

Color:

Yellow

Length:

1 Meter

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

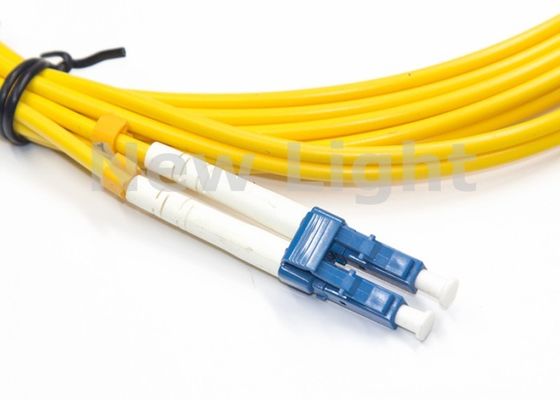

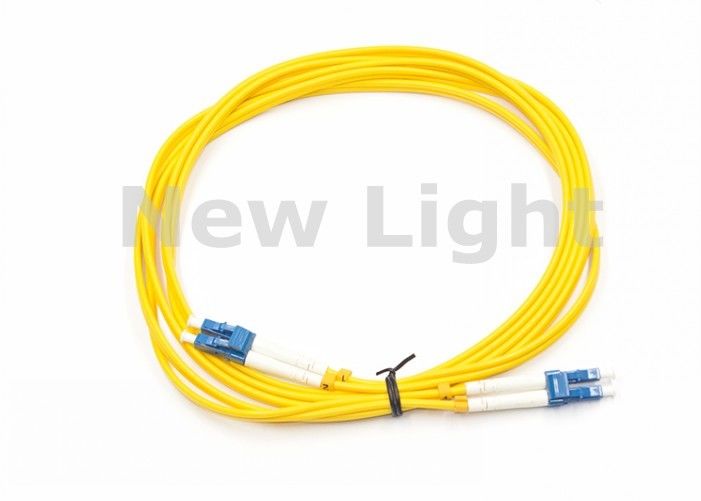

LC to LC Fiber Patch Cable Single Mode 2.0mm Diameter

Product Overview

1M LC UPC to LC UPC Fiber Patch Cable Duplex 2.0mm PVC(OFNR) 9/125 Single Mode Yellow Color

Product Description

This 9/125μm single mode fiber patch cable is RoHS compliant and 100% optically tested for insertion loss to ensure superior quality. It offers exceptional cost-effectiveness for network cabling applications.

We provide comprehensive OEM services including customization of fiber connectors, length, color, fiber grade, specifications, materials, and packaging.

Ordering Options

Feature	Available Options
Connector Type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish	UPC, APC, PC
Cable Type	Simplex, Duplex straight, Duplex Reverse
Fiber	SM(G652), 62.5/125um, 50/125um, OM2, OM3, SM(G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Custom length in meters

Product Specifications

Parameter	Specification	Parameter	Specification
Connector	LC to LC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	UPC to UPC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion Loss	≤0.3dB	Interchangeability	≤0.2dB
Return Loss	≥50dB	Vibration	≤0.2dB
Operating Temperature	-40~70℃	Storage Temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Key Features

Excellent durability and long service life
Superior exchangeability for easy installation
High temperature stability in varying environments
Low insertion loss and back reflection loss
Premium quality PC/UPC/APC polishing standards
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
