Product Details:
|
| Name: | FC Fiber Optic Patch Cord | Diameter: | 2.0mm |
|---|---|---|---|
| Model: | Single | Connector: | FC-FC |
| Color: | Yellow | Length: | 1.5 Meter |
| High Light: | duplex fiber patch cord,single mode fiber optic cable |
||

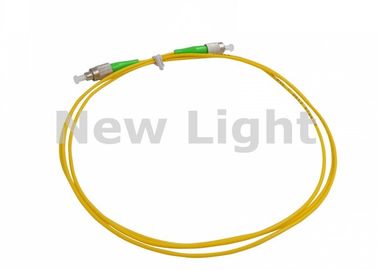

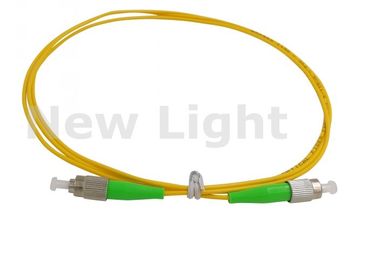

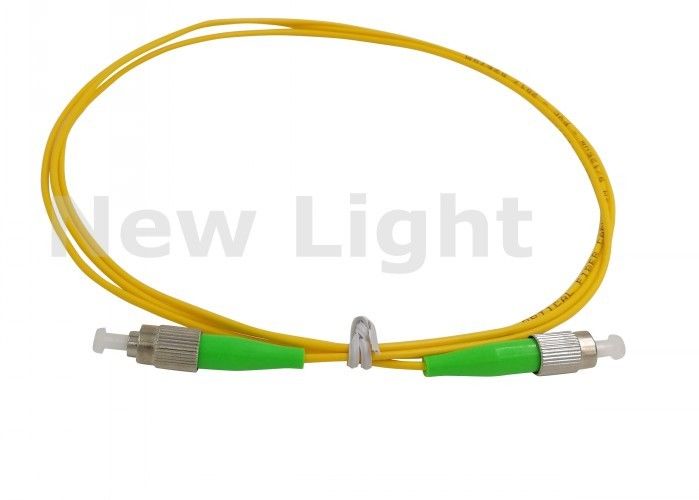

FC/APC-FC/APC Single model 9/125 Simplex Optical fiber patch cord PVC yellow cable
Description:
The types of optical fiber connector are FC,SC,ST,LC,MU,MTRJ and so on.The polish type are PC,UPC and APC. The optical patch cord cable can be a 0.9mm fiber,2.0mm cable or 3.0mm optical cable;the optical fiber cable a single mode fiber or multimode fiber.
The optic fiber connector is composed of high-precision and high-strength of the ceramic ferrule,high-performance optical cable,high-precision connector components,and the use of high-precision grinding equipment and scientific and rigorous process flow.
Type:
* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
* Ferrule endface: PC,UPC,APC,etc.
* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.
Application:
* Telecommunication networks
* Video
* Gigabit Ethernet
* Active device termination
* Multimedia
* Premise installations
* FTTH TTX applications
* Local area networks
* CATV
Specification:
| Connector | FC to FC | Jacket OD | 2.0mm |
| Fiber Mode | 9/125µm | Jacket Color | Yellow |
| Polish | APC to APC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex | Jacket Material | PVC |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75℃ | Storage temperature | -45~85℃ |
| Polarity | A(Tx) to B(Rx) | Fiber Grade |
G652D |
Features
* Good versatility and interchangeability
* Stable and reliable connection and high repeatability
* Low insertion loss,high return loss
