1U Rack Mountable FHD Fiber Optic Patch Panel Holds Up To 4x MTP-24 Cassettes

Brand Name: NL
Model Number: 1U
MOQ: 1~10000
Price: 10~100
Packaging Details: Nomal packing 495*260*55mm
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Capacity:
4x MTP-24 Cassettes
Standard:
1U
Installation:
Standard EIA 19" Rack Rails
Enclosure Type:
Rack Mountable
No. Of Rack Spaces:
1U
Fiber Count:
96core LC
Dimensions (HxWxD):
430*362.4*44mm
Material Thick:
1.2T
Patch Pannel:
SC/LC/FC/ST
Adaptor:
SC/LC/FC/ST/E2000/MPO/MTP
Combination:
Pull-type Box
Apply To:
Data Center & Cloud Computing
Supply Ability:
1000set per day
Highlight:

odf fiber optic patch panel

,

fiber optic distribution box

Product Description

1U rack mount FHD fiber optic patch panel , holds up to 4x MTP-24 cassettes





Features:



12 core fiber available

Cross Connection : AB/BA

Paralled Connection : AB/AB

Small volume, easy management

Insertion Loss : Low IL & Standard IL available

Can customize connection method as QSFP requirements

Area of application

Telecom system

Cabling system

High Density optical laser

QSFP devices





Description:



MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

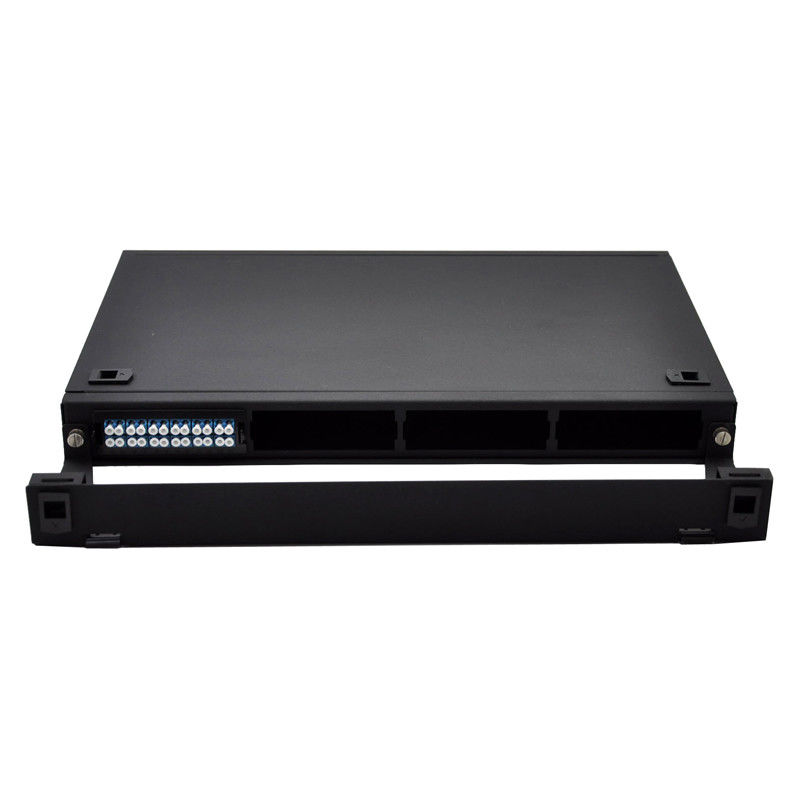

1U Rack Mountable FHD Fiber Optic Patch Panel Holds Up To 4x MTP-24 Cassettes 0







Aplication :



SPCC ( black coating ) Fiber optic distribution frame fiber enclosure provide an interconnect or cross- connect between backbone horizontal cable and active equipment while using minimum rack space in a frame or cabinet. Enclosures allow for easy installation of pre-terminated solutions, and are ideal for ultra high-density fiber applications in data centers, equipment rooms, and central offices.

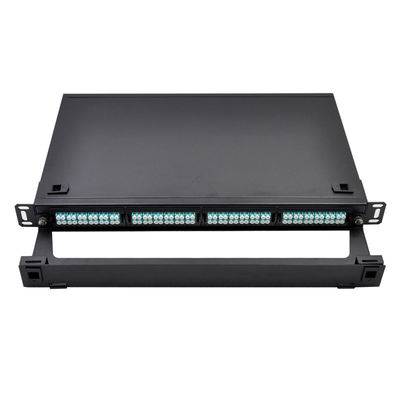

1U Rack Mountable FHD Fiber Optic Patch Panel Holds Up To 4x MTP-24 Cassettes 1







Product Specifications :



No. of Rack Spaces 1U
Fiber Count 96core LC ; 48core SC
Enclosure Type Rack Mountable
Material S P C C ( B l a c k c o a t ing)
Installation Standard EIA 19'' Rack Rails
Dimensions (HxWxD) 430*362.4*44mm





Standards Compliance :



TIA/EIA-568-C.3





Technical Specifications



Type/Performance Singlemode(APC polish) Multimode(PC / Flat Polish)
  Standard Elite Low Loss Standard Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB ≤ 0.35dB ≤ 0.60dB ≤ 0.35dB
Return Loss ≥ 50dB N/A
Operating Temperature -40°C to 80°C 40°C to 80°C
Test Wavelength 1310nm

850nm







Application in network layout :

1U Rack Mountable FHD Fiber Optic Patch Panel Holds Up To 4x MTP-24 Cassettes 2





MTP products’ Standard:

Ø Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant

Ø Structured cabling per TIA-568-C

Ø Parallel Optics

- Optical Internetworking Forum (OIF) Compliant

- InfiniBand Compliant

Ø InfiniBand

- 10G Fiber Channel Compliant

- 40G and 100G IEEE 802.3

- QSFP
