Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel

Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel

    • Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel
    • Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel
  • Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel

    Product Details:

    Place of Origin: China
    Brand Name: New light
    Certification: ROHS ;ISO9001
    Model Number: 12/ 24 F panel

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: USD 68-120 set
    Packaging Details: opp bag+Carton box
    Delivery Time: 2-15 working days
    Payment Terms: T/T, Western Union, MoneyGram ,Paypal
    Supply Ability: 10000 per day
    Contact Now
    Detailed Product Description
    Port: 12 LC Color: Black
    Material: SPECC Aplication: Data Centers,pre-terminated Installations
    Adapter Type: MPO / MTP Adapter Front Panel: LC , SC , ST , FC , E2000
    Size: 19 Inch Max Capacity: From 12 Fiber To 144 Fiber
    Interface: Powder Coated Product Name: 24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel
    Tray: 12/24/48/72/96 Fiber Weight: 6kg

    19 inch 24 Port ODF Fiber Optic Sliding Patch Panel / Termination Box



    Product description:



    Sliding Drawer Type Fiber Optic Distribution Box ,48 Ports Fiber Optic Splice Patch Panel/ODF is a kind of fiber optic management products used to 1u cold rolled steel pulling type single mode fiber patch panel  links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.

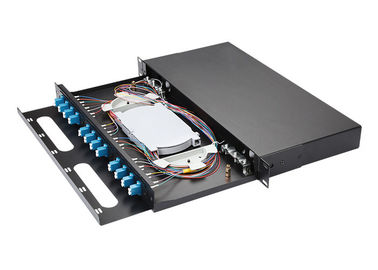

    Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel



    The module box encapsulation structure, collocation to the wiring boxes, compact structure, high density, use convenient operation.



    It can be installed in a 19-inch standard integrated distribution box, network cabinet and open frame.Connect the optical path terminal.It is made of high quality cold rolled sheet material, surface electrostatic spraying treatment, no impurities, no bubble, and even color.

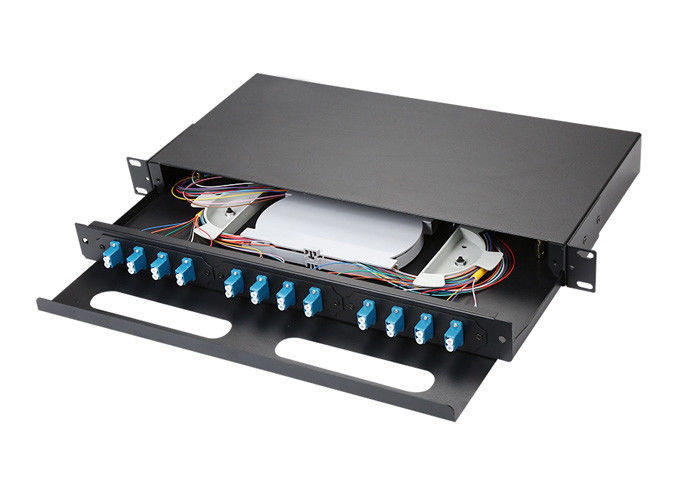

    Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel



    There different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ,e2000 etc . Related fiber accessories and pigtails are optional.



    Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel









    Application:



    1. Telecommunications subscriber loop

    2. Fiber to the home (FTTH)

    3. LAN/WAN

    4. CATV





    Features:



    Used to the branch connection of optical cable termination

    19'' Standard Structure, Rack mounting

    Available for the installation of adaptors

    Drawer Structure, Easy for Operation.

    Compact design for space saving

    Easy for management and operation

    Standard size, light weight and reasonable structure





    Mechanical and environmental characteristics:



    Projects Parameter
    Operating temperature -25℃~+40℃
    Storage temperature -25℃~+55℃
    Relative humidity ≤85%(+30℃)
    Air pressure 70Kpa~106Kpa
    Color Black






    Dimension:



    Model MPO-LC Type Cassette Quantity Height Dimension(LxWxH)
    MPO-LC 2 1U 430*354.1*44mm







    Pulling Type Single Mode Fiber Patch Panel , 1u Cold Rolled Steel Fiber Optic Cable Patch Panel
