Fiber Optic Splitter

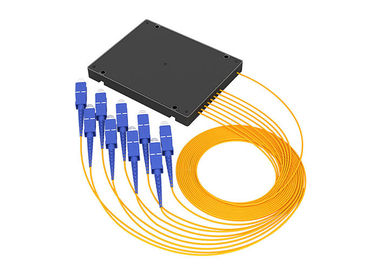

1x8 PLC Fiber Optic Splitter ABS Box Type with SC/PC Connector for FTTX Systems

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1x8 PLC Fiber Optic Splitter ABS Box Type with SC/PC Connector for FTTX Systems

Brand Name:	New Light
Model Number:	ABS Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

SC/PC(Can Be FC, LC, E2000, ST)

Mode Type:

Single Mode

OEM / ODM:

Acceptable

ABS Box Color:

Black

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Cable Length:

1.5m Or Customized

Cable Diameter:

0.9mm, 2.0mm Or 3.0mm

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

Digital Passive PLC Fiber Optic Splitter 1x8 ABS Box Type

This 1x8 PLC Fiber Optic Splitter in ABS box type with SC/PC connector is a planar waveguide integrated optical device that preserves and distributes light power across a wide wavelength range of 1260nm to 1650nm. It is specifically designed for EPON technology applications and FTTP fiber network systems.

Product Description

The PLC optical splitter enables efficient optical signal coupling and distribution in passive optical network (PON) systems. It features wavelength insensitivity, high stability, and uniform splitting performance, making it ideal for broadband passive optical distributor (POS) applications in fiber optic networks.

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	1x8 Splitter
Operating Wavelength	nm	1260-1650
Fiber Type	/	G652D/G657A1/G657A2
Insertion Loss	dB	≤10.5
Uniformity	dB	≤0.8
PDL	dB	≤0.2
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40 to +85
Storage Temperature	℃	-40 to +85
Package Size	mm	120x80x18

* Specifications shown for 1x8 configuration without connector

Product Design

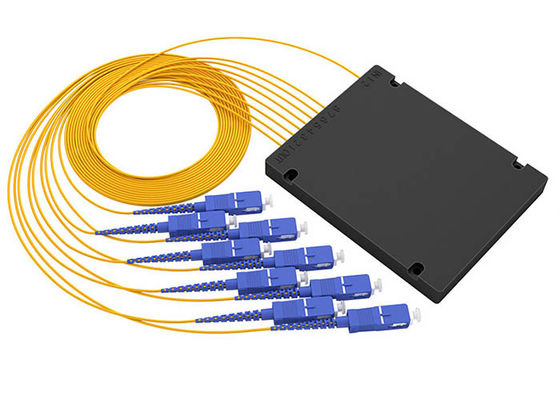

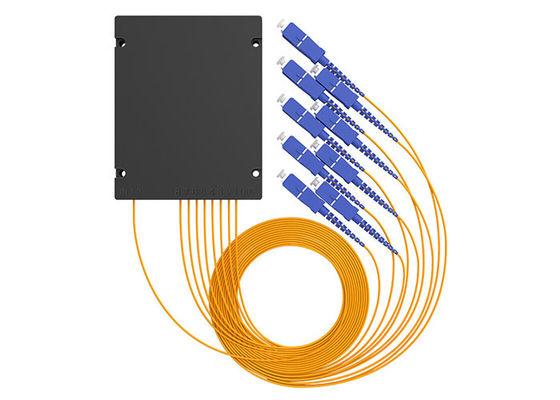

The PLC optical splitter ABS box type is available in various split modes and package types, and can be customized according to specific customer requirements. 1x8 PLC Fiber Optic Splitter ABS Box Type with SC/PC Connector for FTTX Systems 1

Packaging

Products are securely packaged in OPP bags with outer carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

How is your product quality?

We produce according to IEC and European standards in nearly dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What is your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are typically in stock.

What is your warranty policy?

Patch cords come with a 2-year warranty for non-artificial damage. For artificial damage, we provide free repairs with customer responsible for freight costs.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. For high-value products, sample charges apply but are refundable with order placement.
