Fiber Optic Splitter

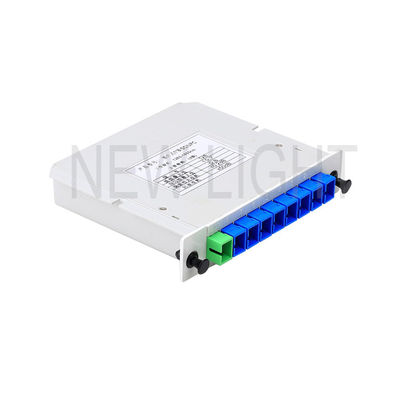

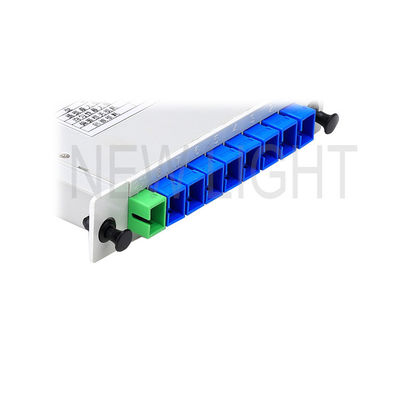

Low Loss Cassette Type Fiber Optic PLC Splitter with Stainless Steel Tube for FTTH Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Low Loss Cassette Type Fiber Optic PLC Splitter with Stainless Steel Tube for FTTH Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Application:

FTTH FTTB FTTX Network

Material:

ABS+PC

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

SC LC 1x8 Fiber Optic Splitter - Low Loss Cassette Type PLC Splitter

PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, featuring small volume, wide working wavelength range, high reliability, and excellent light uniformity. Designed for Fiber Optic Closure installation with stainless steel sealed packaging.

Key Features

Compatible with various fiber types
Compact and space-saving design
Wide operating temperature: -40℃ to +85℃
Broad operating wavelength: 1260nm to 1650nm
Full fiber core structure
Low additional loss and insertion loss
High reliability and stability
Excellent uniformity
Standard split counts: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64; 2x4, 2x8, 2x16, 2x32, 2x64

Applications

Space-constrained installations where cassette type PLC splitters cannot be used
FTTX/FTTH Systems
CATV Links
Optical Signal Distribution
Passive Optical Networks (PON)
DWDM/CWDM systems
Test equipment
LAN/MAN/WAN networks

Compliance Standards

Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, RoHS

Technical Parameters

Parameters	1*2	1*4	1*8	1*16	1*32	1*64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (LWH)	1008010	1008010	1008010	1208018	14011518	14011518

CAD Drawing

Tube size: 50x4x4 mm

The PLC optical splitter MINI module is available in various split modes and package types, with customization options available according to customer requirements.

Packaging

Expertly designed export packaging ensures products arrive in perfect condition.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

What's the price?

Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred. We offer competitive logistics solutions for all order sizes.

How is your quality?

We follow IEC and European standards in near dust-free workshops with imported production and quality control equipment. All products are 100% tested before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords: 2-3 working days for 5,000 pieces. Regular products are typically in stock.

What's your warranty?

2-year warranty for patch cords (non-artificial damage). Artificial damage repairs are free, but customer covers shipping.

What's your packing?

International export packaging with custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays shipping). Higher-value products require sample charge.

How can I order?

1. Contact us with product specifications and quantity
2. We provide pricing and lead time
3. Proforma invoice upon acceptance
4. Production begins after payment
5. Shipping confirmation with tracking
6. Ongoing support for long-term cooperation

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% before delivery.
