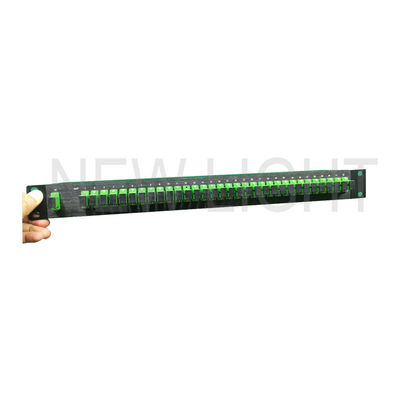

Rack Mount Type Fiber Optic Splitter with Low Insertion Loss and 1x32 Split for GPON Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 2 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

Rack Mount Type Fiber Optic Splitter / GPON Optical Splitter Low Loss 1 X 32

New Light Optic offers a comprehensive range of rack mount and patch panel type splitter modules and products. Our PLC Splitter Modules are available in either plastic modules or LGX metal boxes for plug-and-play splitter applications. Customized designs are available to meet specific customer requirements. All splitters deliver exceptional optical performance and reliability, meeting GR-1221-CORE and GR-1209-CORE specifications.

Available Configurations

Split Ratios: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64
Fiber Types: Unconnectorized, 2mm to 3mm jacketing
Housing Options: Rack mount type or inside metal box/patch panel type
Connector Options: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC
Custom connector configurations and combinations available

Key Features

High uniformity across channels
Easy installation and deployment
High reliability and stability
Compliance with GR-1221 and GR-1209 standards
Various coupling ratios available
Single mode and multi-mode options
Low PDL, low excess loss, low insertion loss
Environmentally stable performance
Compact standard design
Wide variety of connector options

Technical Specifications

Low Insertion Loss
Low Polarization Dependent Loss (PDL)
Compact Design
Excellent channel-to-channel uniformity
Wide Operating Wavelength: 1260nm to 1650nm
Wide Operating Temperature: -40°C to 85°C
High Reliability and Stability

Performance Parameters

Parameters	1*2	1*4	1*8	1*16	1*32	1*64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (LWH)	1008010	1008010	1008010	1208018	14011518	14011518

Applications

FTTX Networks
CATV Systems
Testing Devices
Data Communication
Passive Optical Networks (EPON, BPON, GPON)
Other fiber optic system applications

Compliance Standards

Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS Compliant

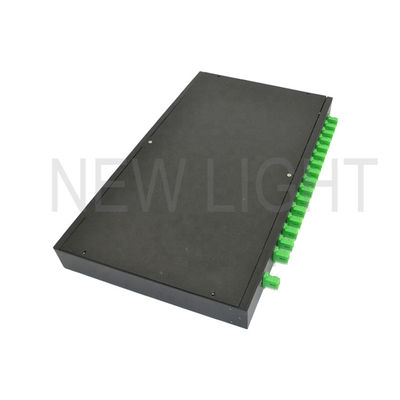

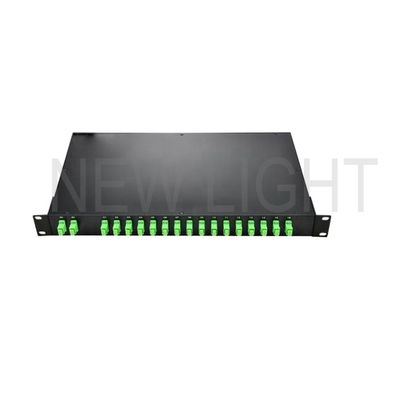

Product Images

Packing & Delivery Information

Trade Terms: FOB, CIF, CFR, etc.
Payment Methods: T/T, Western Union, PayPal
Payment Terms: T/T in advance
Minimum Order Quantity: 10 pieces
Port: Shenzhen
Lead Time: Within 5 working days after receiving payment
Shipping Methods: Express, Air
Samples: Available (not free)
Packaging: Carton/wooden package

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering just 1 piece as the cost will be higher, resulting in a higher price than your budget.

Q: What's the price?

A: The price depends on your quantity. After you specify your quantity, we will offer our best price. Large quantities receive very competitive pricing.

Q: Can you quote FOB price?

A: Yes we can, but due to the small size and weight, most deliveries are by air (DHL, TNT, UPC, FEDEX, etc.), making FOB pricing difficult. The best approach is to provide your detailed specifications and quantity, and we will offer product price including freight for your reference. EXW price or CFR price may be better options.

Q: How is your quality?

A: Our production follows IEC and European standards in nearly dust-free workshops. We use imported production equipment and quality control equipment, especially for MTP Daisi equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time can be 2-3 working days for 5,000 pieces. Regular products are typically in stock, and we can handle urgent orders.

Q: What's your warranty?

A: For patch cords, we offer a 2-year warranty from delivery date, covering only non-artificial damage. For artificial damage, we can repair it for free, but freight costs will be your responsibility.

Q: What's your packing?

A: We use international export packaging. We can also print your logo on the packaging.

Q: Can you do OEM/ODM?

A: Yes, we can. As a manufacturer, all products accept OEM/ODM, and we can sign confidentiality agreements.

Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we can provide samples for free, but freight is paid by the customer. For high-value products, we cannot offer free samples - sample charges and freight must be paid initially, but sample charges will be refunded after you place an order.

Q: How can I order?

A: 1. Send us an email or inquiry with product name, detailed specifications, and quantity. Provide your receiving address if you need us to calculate freight.
2. After understanding your requirements, we'll offer our best price and lead time.
3. When you accept the quotation, we'll provide a Proforma Invoice with our bank account.
4. We'll arrange production after receiving payment.
5. Before delivery, we'll confirm receiving information and send tracking numbers.
6. We strive to meet your requirements for long-term cooperation.

Q: What are your payment terms?

A: T/T, Western Union, PayPal, MoneyGram. For large amounts, 50% deposit in advance, 50% balance paid before delivery.
