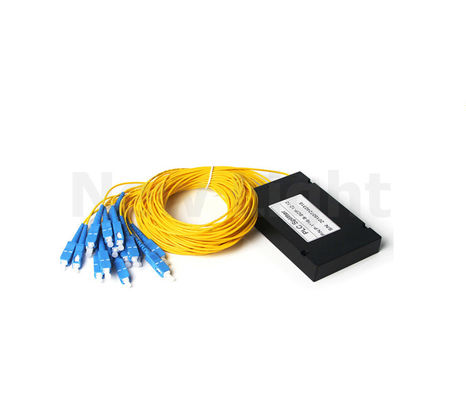

WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant
  • name

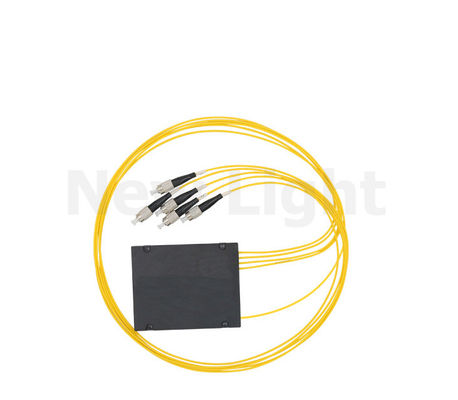

  • name

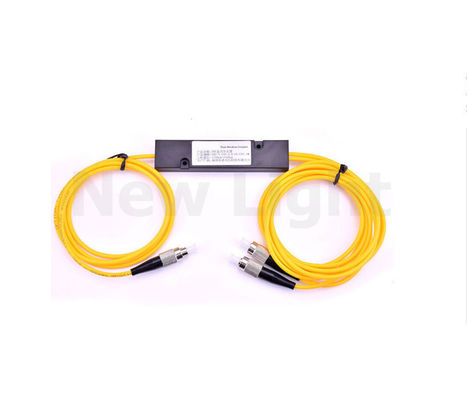

  • name

WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant

Brand Name: New Light
Model Number: LC/ST/FC/SC/E2000
MOQ: 10
Price: 1~30
Packaging Details: export packing
Payment Terms: L/C,T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Connector Type:
LC/ST/FC/SC/ MPO /MTP/MU/MTRJ/E2000
Cable Material:
PVC/ LSZH
Fiber Type:
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Mode Type:
Single / Multi Mode
Core Type:
1:2 / 4/ 6 / 8 / 12 / 32 / 64 Core
Cable Diameter:
0.9/2.0/3.0
Cable Length:
Can Be Customized
Delivery Time:
2-7 Working Days After Receive Payment
Packing:
Opp Bag With Carton Box
Payment Term:
T/T ,30% Deposit In Advance , Balance Paid Before Delivery
Supply Ability:
1000000
Highlight:

fiber optic plc splitter

,

single mode fiber splitter

Product Description
WDM Single Mode Fiber Splitter 1x2 / 4 / 6 / 8 / 16 / 32 / 64 SC / PC
PLC splitter is based on planar lightwave circuit technology and precision aligning process, capable of dividing a single/dual optical input into multiple optical outputs uniformly (denoted as 1xN or 2xN). These splitters are applied in FTTX deployments, PON networks, CATV links, and optical signal distribution. DYSFO's PLC splitters offer superior optical performance, high stability, and reliability to meet various application requirements in different environments.
Key Features
  • Low Insertion Loss
  • Low Polarization Dependent Loss
  • Wide Operation Wavelength
  • Wide Operation Temperature
  • High Stability and Reliability
  • Telcordia GR-1209 and GR-1221 Compliance
  • YD/T 2000.1-2009 Compliance (TLC Product Certificate)
  • Excellent Mechanical Performance
  • High Polarization Extinction Ratio & Excellent Uniformity
  • Fiber input: 0.9mm or 250μm fiber options
  • Fiber output: 250μm bare fiber (optimized for splicing) G.657A Fiber
Technical Specifications
Coupling Ratio Performance:
Coupling Ratio Insertion Loss (dB)
50/502.8-3.6
45/553.3-3.9
40/603.8-4.5
35/654.2-5.0
30/704.6-5.7
25/755.8-6.7
20/806.7-7.6
15/857.8-9.0
10/909.3-11.0
5/9512.4-14.0
1/9918.6-21.0
Parameter Unit Specification
Excess Loss (Typ.)dB0.10
PDL (Max.)dB0.15
Operating Wavelengthnm1310±40, 1550±40, 1310/1550±40, 1310/1550/1490±40 or custom wavelength
DirectivitydB≥55
Port Configuration1*2 or 2*2
Splitter Performance by Configuration:
Parameter Unit Specification by Port Count
N=3 N=4 N=5 N=6 N=8 N=10 N=16 N=24 N=32
Fiber TypeCorning SMF-28e
IL(MAX)dB5.67.18.39.210.611.7514.415.617.4
UniformitydB0.50.71.11.31.51.71.822.2
Return LossdB≥55
DirectivitydB≥55
PDLdB0.20.20.30.30.30.30.40.50.5
Note: All specifications above do not include connectors
Product Advantages
All PLC products comply with Telcordia GR-1209-CORE & Telcordia GR-1221-CORE standards. We provide 2-year quality assurance, accept custom orders, offer free samples with fast delivery. For buyer protection, we welcome online orders through Alibaba.
Applications
  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks (PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment
  • Active device termination
  • Telecommunication networks
  • Metro networks
  • Data processing networks
  • Premise installation
  • Wide Area Networks
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 0
Available Types
  • Basic type PLC splitter
  • SFF type PLC splitter
  • 900um Fan-out Type PLC Splitter
  • Cassette type PLC splitter Module
  • Rack type PLC splitter Module
  • Tray assembly PLC splitter Module
  • Flat Quick-Connect Termination Type PLC Splitter Module
Connector Options
Connector Type Available Options
Connector TypesSC, ST, FC, LC, MU, MTRJ, E2000, MPO/MTP, SMA
CablesPVC/LSZH, OM1, OM2, OM3, OM4, Plenum(OFNP), Armored
ColorsYellow, Gray, Sky Blue, Orange, White, Black
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 1 WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 2 WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 3
Manufacturing & Quality Assurance
Production Department
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 4
Testing Procedures
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 5
Quality Control
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 6
Packaging & Shipping
Packaging: Bags & carton boxes
Shipping Methods: International Express via FedEx, DHL, UPS, TNT and EMS. Please notify us in advance if you have a preferred carrier.
FedEx Overnight: 1-3 business days (weekends and holidays excepted)
DHL: 2-4 business days (weekends and holidays excepted). For Spain, Italy, Brazil and some other countries, delivery may take longer due to customs clearance.
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 7
Delivery Process
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 8
Payment Options
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 9
Contact Information
WDM Single Mode Fiber Optic PLC Splitter with 1x2 to 64 Core Options and Low Insertion Loss, Telcordia GR-1209 & GR-1221 Compliant 10
