Single Mode PLC Fiber Optic Splitter for FTTX Network with Compact Design

Brand Name:	New Light
Model Number:	LC / FC / SC / ST / E2000
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

Connector Type:

LC / FC / SC / ST / E2000

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

SC / ST / FC Coupler Fiber Optic Splitter PLC Internet Application

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

SC / ST / FC Coupler Fiber Optic Splitter

Single Mode PLC Internet Application

Product Overview

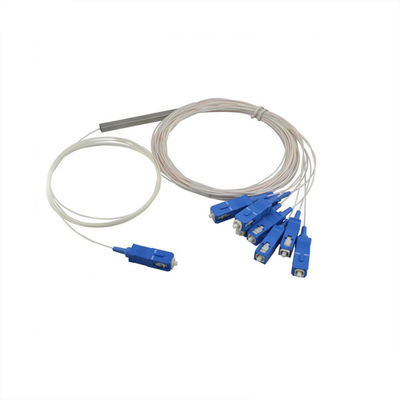

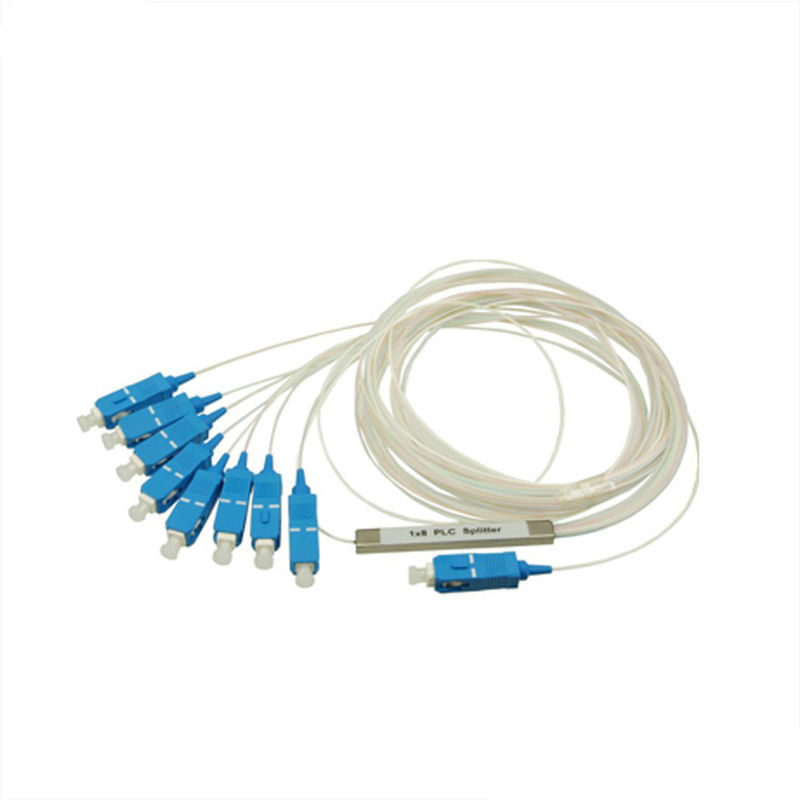

This optical splitter utilizes Planar Lightwave Circuit (PLC) technology with split ratios of 2, 4, 8, 16, 32, and 64 channels. The micro tube type features 0.9mm slip-on fiber multi-channel direct output with a compact design for easy installation. Ideal for FTTX networks, LAN/WAN, and CATV network applications.

PLC splitters are optical power management devices fabricated using silica optical waveguide technology. They feature small size, high reliability, wide operating wavelength range, and excellent channel-to-channel uniformity. Widely used in PON networks for optical signal power splitting, we provide complete series of 1xN and 2xN splitter products tailored for specific applications.

Technical Specifications

Parameter	4 Channel	8 Channel	16 Channel
Channel Wavelength (nm)	1270~1610
Center Wavelength Accuracy (nm)	±0.5
Channel Spacing (nm)	20
Channel Pass Band (@-0.5dB bandwidth nm)	>14
Insertion Loss (dB)	≤1.4	≤2.6	≤5.0
Channel Uniformity (dB)	≤0.5	≤0.5	≤0.5
Channel Ripple (dB)	0.3
Isolation (dB) - Adjacent	N/A	>30	>30
Isolation (dB) - Non-adjacent	N/A	>40	>40
Insertion Loss Temperature Sensitivity (dB/℃)	<0.005
Wavelength Temperature Shifting (nm/℃)	<0.002
Polarization Dependent Loss (dB)	<0.1
Polarization Mode Dispersion (PS)	<0.1
Directivity (dB)	>50
Return Loss (dB)	>45
Maximum Power Handling (mW)	500
Operating Temperature (℃)	-5~+75
Storage Temperature (℃)	-40~85
Package Dimension (mm)	L100 x W80 x H10 (2-8CH Module) L120 x W80 x H18 (9-18CH Module)

Applications

CATV Systems

Active Device Termination

Telecommunication Networks

Metro Networks

Local Area Networks

Data Processing Networks

Test Equipment

Premise Installation

Wide Area Networks

Company Profile

New Light Optics Technology Limited is a high-tech company specializing in the R&D, manufacturing, sales, and service of optical communication products. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Our product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

We feature advanced technology, professional R&D teams, sophisticated production equipment, and skilled engineers. With a high-quality control system, our products are delivered to over 60 countries and regions including the USA, Europe, Brazil, Middle East, and Asia.

Quality Assurance

Our products have earned high reputation and positive feedback from customers worldwide. We welcome opportunities to support and cooperate with new partners.

Packaging & Shipping

Packaging: Bags & carton boxes
Shipping Options: International Express via FedEx, DHL, UPS, TNT, EMS, or by sea
FedEx Overnight: 1-3 business days delivery (excluding weekends and holidays)
DHL: 2-4 business days delivery (excluding weekends and holidays). Some countries may experience longer delivery times due to customs clearance

Payment Terms

Accepted payment methods: T/T, PayPal, Western Union, Money Gram, L/C
Standard terms: 30% deposit in advance, 70% balance paid before delivery

Our Services

"One to one" personalized service: Each sales representative serves only five clients to ensure dedicated support
Comprehensive after-sales service: 24-hour designated telephone support, email, and dedicated customer manager
Long warranty: 3-year warranty with free polishing or testing for non-artificially damaged cables (customer responsible for freight costs)
