1x8 Mini Type PLC Splitter with SC Connector and Stainless Steel Tube for Fiber Optic Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1x8 Mini Type PLC Splitter

Connector Type:

SC / LC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm (can Be 250um)

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

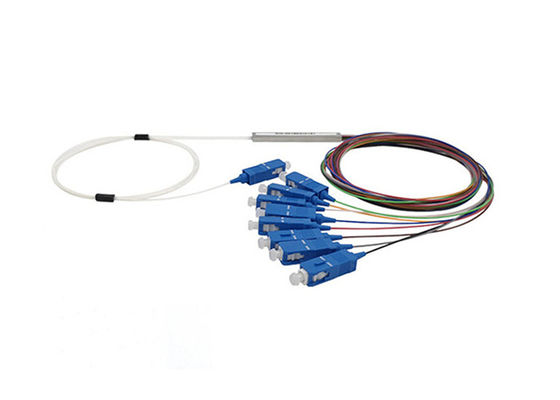

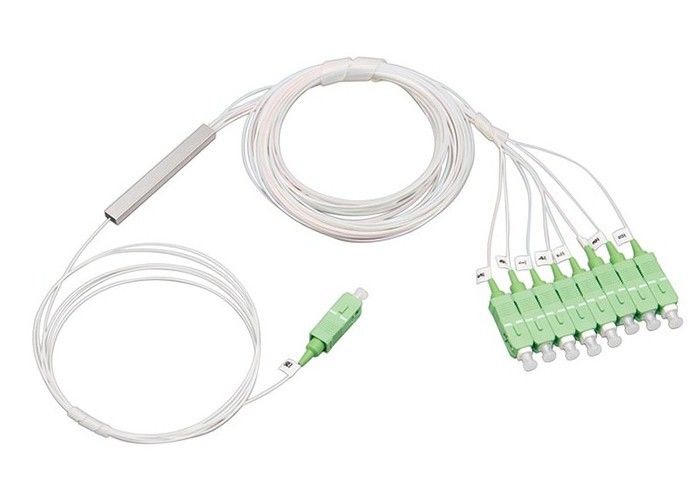

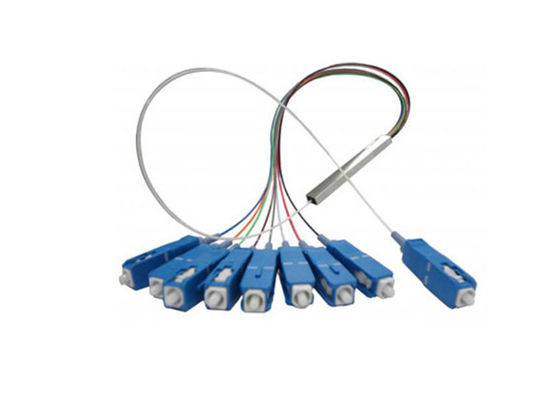

Miniature Optical Fiber Splitter 1x8 Mini Type PLC With SC Connector

Product Overview

This 1x8 miniature optical fiber splitter features one fiber input and eight fiber outputs, with optional 2x8 configurations available. The compact PLC splitter utilizes planar waveguide technology to distribute optical power across a wide wavelength range of 1260nm to 1650nm, making it ideal for EPON, FTTP, and broadband passive optical network applications.

Key Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Product Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	PLC Optical Splitter Mini Type
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Insertion Loss	dB	≤4.0 (1x2), ≤7.2 (1x4), ≤10.5 (1x8), ≤13.7 (1x16), ≤17.0 (1x32), ≤20.6 (1x64)
Uniformity	dB	≤0.4 (1x2), ≤0.6 (1x4), ≤0.8 (1x8), ≤1.2 (1x16), ≤1.5 (1x32), ≤2.0 (1x64)
PDL	dB	≤0.2 (1x2), ≤0.2 (1x4), ≤0.2 (1x8), ≤0.3 (1x16), ≤0.3 (1x32), ≤0.35 (1x64)
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85

* Specifications shown are without connector

CAD Drawing & Dimensions

Tube size: 40x4x4 mm

The PLC optical splitter MINI module is available in various split modes and package types, with customization options available according to customer requirements.

Packaging

Products are securely packaged using OPP bags inside carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though we recommend larger quantities for better pricing.

What is the price?

Pricing varies by quantity. We provide competitive pricing for larger orders upon request.

Can you quote FOB price?

We typically recommend EXW or CFR pricing due to product size. We provide comprehensive freight solutions for all order sizes.

How is your quality control?

We adhere to IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your lead time?

We maintain three factories with rapid production capabilities. Standard products are often in stock, with custom orders processed within 2-3 working days for quantities up to 5000 pieces.

What is your warranty policy?

We offer a 2-year warranty for patch cords covering non-artificial damage. Repair services are available for artificial damage with freight covered by customer.

What is your packaging?

We use international export-standard packaging with optional custom logo printing available.

Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM/ODM services and can sign confidentiality agreements.

Can I request a sample?

Free samples are available for certain products with freight prepaid by customer. Sample charges for high-value products are refundable with subsequent orders.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then proceed with proforma invoice and production upon payment confirmation.

What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we offer 50% deposit with balance due before delivery.
