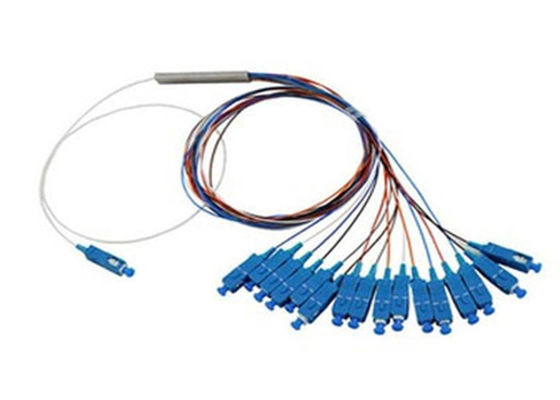

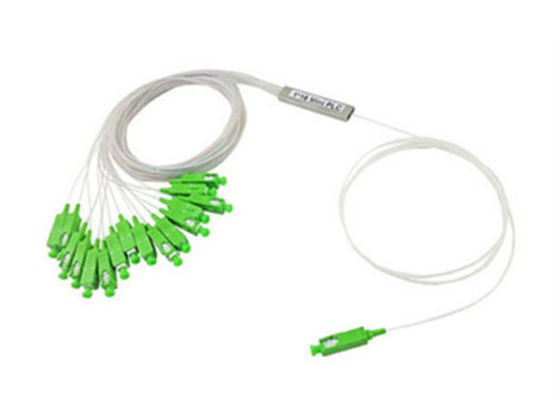

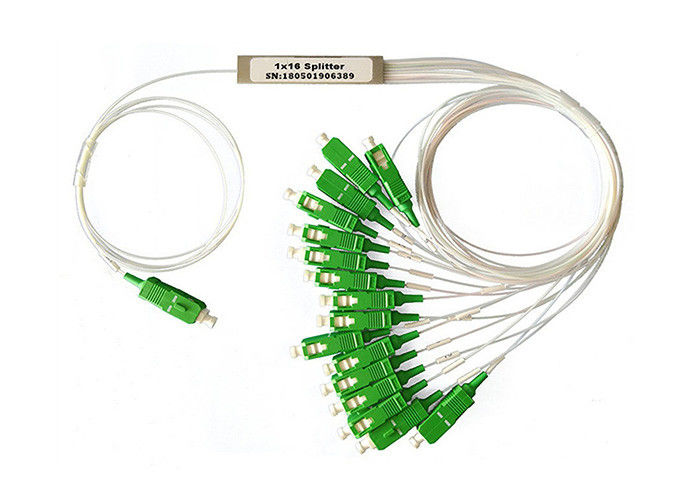

1 In 16 Out Miniature PLC Optical Fiber Splitter with SC Connector and Stainless Steel Tube

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 16 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

1 In 16 Out Miniature Type PLC Optical Fiber Splitter With SC Connector

Product Overview

This 1x16 miniature optical fiber splitter features one fiber input and sixteen fiber outputs, with optional 2x16 configuration available. The compact PLC splitter utilizes planar waveguide technology to distribute optical power across a wide wavelength range of 1260nm to 1650nm, making it ideal for EPON networks and FTTP fiber systems.

Key Applications

FTTX Networks
LAN Systems
WAN Infrastructure
Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks
Various Fiber Optic System Applications

Product Features

Low insertion loss for optimal signal transmission
Minimal polarization dependent loss (PDL)
High channel count capability
Exceptional reliability and long-term stability
Wide operating wavelength range
Broad operating temperature tolerance
Compact, space-saving design

Technical Specifications

Parameter	Unit	PLC Mini Type Specifications
Operating Wavelength	nm	1260-1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Insertion Loss	dB	≤4.0 (1x2), ≤7.2 (1x4), ≤10.5 (1x8), ≤13.7 (1x16), ≤17.0 (1x32), ≤20.6 (1x64)
Uniformity	dB	≤0.4 (1x2), ≤0.6 (1x4), ≤0.8 (1x8), ≤1.2 (1x16), ≤1.5 (1x32), ≤2.0 (1x64)
PDL	dB	≤0.2 (1x2), ≤0.2 (1x4), ≤0.2 (1x8), ≤0.3 (1x16), ≤0.3 (1x32), ≤0.35 (1x64)
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40 to +85
Storage Temperature	℃	-40 to +85

* Specifications shown are without connector

CAD Drawing & Dimensions

Tube size: 50x4x4 mm

The PLC optical splitter MINI module is available in various split modes and package types, with customization options available to meet specific customer requirements.

Packaging

Products are securely packaged using OPP bags inside carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though we recommend larger quantities for better pricing efficiency.

How is pricing determined?

Pricing varies by quantity - we provide competitive quotes based on your specific order volume.

Can you provide FOB pricing?

We typically recommend EXW or CFR pricing for optimal freight solutions, though FOB can be arranged for larger shipments.

What is your quality assurance process?

We adhere to IEC and European standards with imported production equipment, dust-free workshops, and 100% product testing before delivery.

What is your production lead time?

With three specialized factories, we can process 5,000 patch cords in 2-3 working days, with many standard products available from stock.

What warranty do you offer?

We provide a 2-year warranty for patch cords covering non-artificial damage, with repair services available for other issues.

Do you offer OEM/ODM services?

Yes, we support full OEM/ODM customization and can sign confidentiality agreements as needed.

Can I request samples?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid. Higher-value products may require sample charges.

What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we offer 50% deposit with balance due before delivery.
