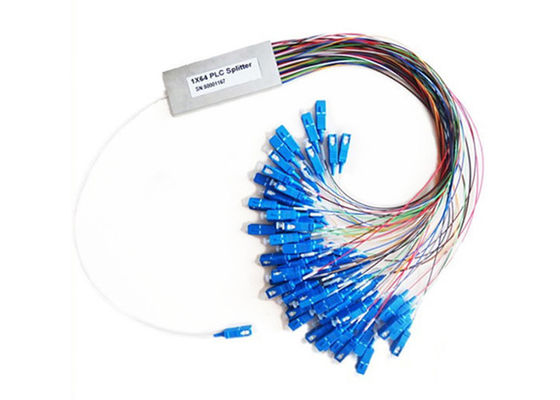

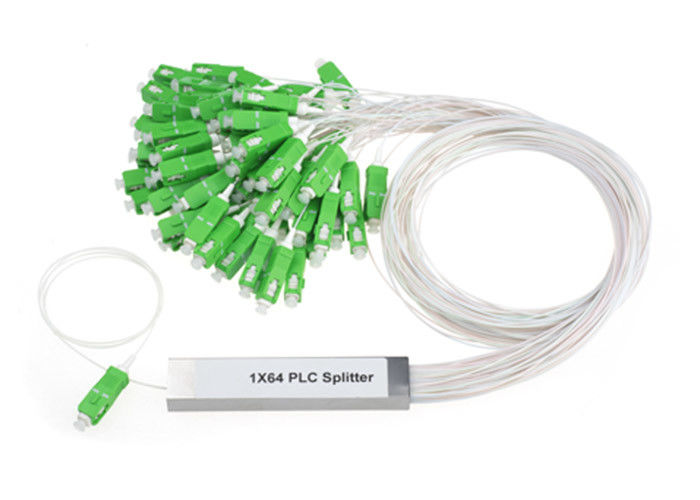

Passive Fiber Optic Splitter 1 In 64 Out Mini Type PLC Splitter with SC Connector

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 64 Out Mini Type PLC Splitter

Connector Type:

SC / APC, SC / PC

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm(can Be 0.6mm Or 0.25mm)

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

Passive Fiber Optic Splitter 1 In 64 Out Mini Type PLC 1x64 With SC Connector

Product Overview

This 1x64 miniature PLC fiber optic splitter features one fiber input and 64 fiber outputs, with optional 2x64 configurations available. The compact planar waveguide device operates across a wide wavelength range of 1260nm to 1650nm, covering EPON technology wavelengths of 1310nm, 1490nm, and 1550nm. Ideal for FTTP fiber network systems and broadband passive optical distribution applications.

Applications

FTTX Networks
LAN (Local Area Networks)
WAN (Wide Area Networks)
Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss
Low Polarization Dependent Loss (PDL)
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	1x64 Mini PLC Splitter
Operating Wavelength	nm	1260-1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Insertion Loss	dB	≤20.6
Uniformity	dB	≤2.0
PDL	dB	≤0.35
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40 to +85
Storage Temperature	℃	-40 to +85

* Specifications shown without connectors

CAD Drawing & Dimensions

Tube size: 60x12x4 mm

The PLC optical splitter MINI module is available in various split modes and package types, with customization options available to meet specific customer requirements.

Packaging

Products are securely packaged in OPP bags within carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What is your MOQ?

A: Minimum order quantity is 1 piece, though larger quantities receive more competitive pricing.

Q: What is the price?

A: Pricing varies by quantity. We provide competitive quotes based on your specific requirements.

Q: Can you quote FOB price?

A: We typically recommend EXW or CFR pricing for optimal freight solutions. Contact us for detailed shipping options.

Q: How is your quality?

A: We adhere to IEC and European standards with imported production equipment and 100% product testing before delivery.

Q: What is your lead time?

A: Standard lead time is 2-3 working days for 5000 pieces, with expedited options available for urgent orders.

Q: What is your warranty?

A: We offer 2-year warranty for patch cords covering non-artificial damage.

Q: What is your packaging?

A: International export packaging with optional custom logo printing available.

Q: Can you do OEM/ODM?

A: Yes, we support OEM/ODM services and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for certain products with freight prepaid. Sample charges apply for high-value items.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing, lead time, and proforma invoice for order processing.

Q: What are your payment terms?

A: We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, 50% deposit with balance due before delivery.
