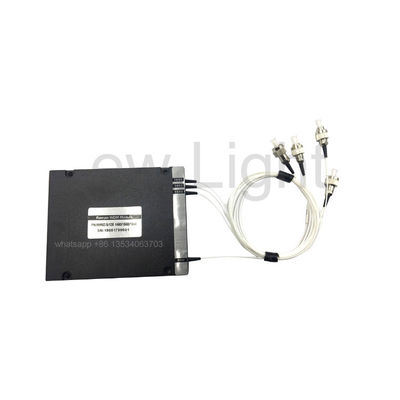

8 Channel FWDM Filter WDM with 1470-1610nm Wavelength and Low Insertion Loss for Optical Communication

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Mode Type:

Single Mode

Insertion Loss:

≤ 2.5 DB

Connector Type:

SC/UPC

Nuber Of Channels:

8 Channel

Wavelength:

1470-1610nm

Passband Ripple:

≤0.30dB

Return Loss:

≥45dB

Derectivity:

≥50dB

Fiber Type:

Corning SMF-28 Ultra

Supply Ability:

1000000

Highlight:

wdm in optical fiber

wall mount fiber termination box

Product Description

Multi Channel FWDM Filter WDM Steel Tube Communication Equipment

4, 8, 16, 18 Channel FWDM Filter WDM Steel Tube Communication Equipment

Product Overview

FTTX Filter WDM modules are extensively used in EDFA, Raman amplifiers, WDM networks, and fiber optics instrumentation. Based on Thin Film Filter (TFF) technology, these devices combine or separate light at different wavelengths across a wide range. They expand the capacity of single fibers to enable bidirectional communication, making them ideal for optical network upgrades, expansion projects, and comprehensive service integration.

Key Features

Low Insertion Loss
High Channel Isolation
Wide Pass Band
High Reliability and Stability
Epoxy Free on Optical Path

Applications

Line Monitoring
Telecommunications
Cellular Applications
Fiber Optical Amplifiers
Access Networks
Metro WDM Systems
Long Haul WDM Systems
Enterprise Networks

Technical Specifications

Item	Unit	Parameters
Channel Spacing	GHz	200
Wavelength Range		C- or L-band ITU channels 186.6 to 196.1 THz
Passband	GHz	≥+/- 33
Transmission Passband Ripple	dB	≤0.3
Transmission Insertion Loss	dB	≤1.0
Reflection Passband Ripple	dB	≤0.2
Reflection Insertion Loss	dB	≤0.4
Transmission Isolation (Adjacent Channel)	dB	≥30
Transmission Isolation (Non-Adjacent Channel)	dB	≥50
Reflection Isolation	dB	≥13
Polarization Dependent Loss	dB	≤0.2
Polarization Mode Dispersion	ps	≤0.2
Directivity	dB	≥50
Return Loss	dB	≥45
Optical Power Handling	mW	≥500
Tensile Load	N	≥5
Operating Temperature Range		-5 to 70°C
Storage Temperature Range		-40 to +85°C
Fiber Type		SMF-28e
Package Dimension	mm	5.5 x 34mm

All specifications are based on devices without connectors and guaranteed over wavelength, polarization and temperature.

Dimensions Drawing

Spectral Plot

Ordering Information

Product	Channel Frequency	Tube	Fiber Length	Connector
200G DWDM Filter	ITU Grid in C-band	1=250um fiber 2=900um fiber 3=Others	1=0.5+/-0.1m 2=1.0+/-0.1m 3=others	0=No connector 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC

Frequently Asked Questions

1. Are you the real factory?

Yes, we are the real factory with 16 years of manufacturing experience.

2. What is your fiber brand?

Fiber brands include YOFC and FiberHome.

3. What are your main products?

Fiber optic patch panels, fiber MPO & MTP cassettes, MPO & MTP cables, outdoor fiber optic cables, indoor fiber optic cables, FTTH drop cables, ADSS cables, indoor armored patch cords, and optical patch cords (SC, LC, FC, ST, MTP, MPO).

4. What is your product quality guarantee period?

20 years guarantee for fiber optic cable products.

5. Do you have certificates for raw materials?

We maintain long-term relationships with qualified ISO9001 and ROHS certified raw material suppliers.

6. What is your delivery time?

Within 48 hours for standard fiber optic products.

7. What is your minimum order quantity (MOQ)?

MOQ for Fiber Optic Cable Patch Panel is 10 sets. No MOQ required for fiber optic patch cords as we maintain stock for standard types.

8. Do you have distributors in other countries?

We currently sell directly to customers and offer factory pricing.

9. What payment methods do you accept?

For large orders: T/T. For small orders: T/T and PayPal are acceptable.

10. What are your shipping and delivery options?

For large orders: by sea (LCL or FCL). For small orders: by sea (LCL), by air, or by courier services - all options are available.
