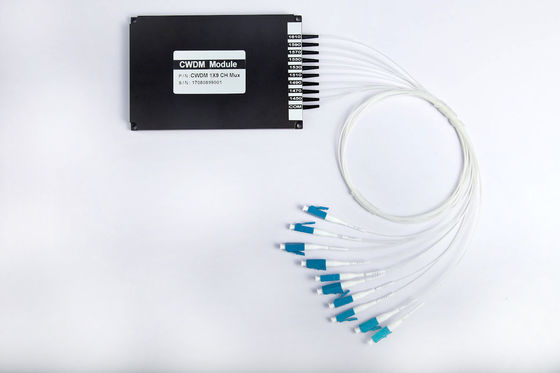

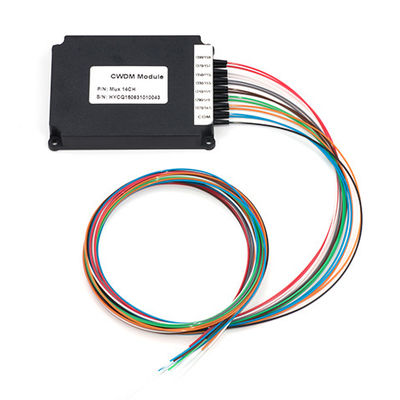

16 Channels CWDM Module Fiber Optic WDM with LC UPC Connector and Wide Pass Band
  • name
  • name
  • name

16 Channels CWDM Module Fiber Optic WDM with LC UPC Connector and Wide Pass Band

Brand Name: New Light
Model Number: LC UPC
MOQ: 1
Price: 1~30
Packaging Details: export packing
Payment Terms: L/C,T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Brand Name:
New Light
Fiber Type:
2.0
Connector Type:
LC UPC
OEM / ODM:
Acceptable
Fiber Length:
As Your Requirement
Warranty:
3 Years
Delivery Time:
2-10 Working Days After Receive Payment
Payment:
T/T , L/C , Paypal , Westen Union , Money Gram
Products Name:
16 Channels CWDM Module Fiber Optic Splitter With LC UPC Connector
Supply Ability:
1000000
Highlight:

outdoor fiber termination box

,

wdm in optical fiber

Product Description
16 Channels Fiber Optic WDM, Fiber Optic Splitter LC UPC Connector Wide Pass Band
Product Overview
16 Channels CWDM module Fiber Optic Splitter with LC UPC connector
Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
Our CWDM products include: bare single CWDM device packed in glass tube or stainless steel tube, CWDM Mux Demux modules packed in ABS box up to 16-channel or even 18-channel Multiplexing on a single fiber or CWDM modules packed in standard 19" 1U rackmount. Due to the low insertion loss is needed in WDM networks, we can also add "Skip Component" in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: Glass tube, stainless steel tube, ABS box package, LGX package and 19" 1U rackmount.
Key Features
  • Low Insertion Loss
  • Wide pass band
  • High Channel Isolation
  • High Stability and reliability
  • Epoxy-free on Optical Path
Applications
  • Line Monitoring
  • WDM Network
  • Telecommunication
  • Cellular Application
  • Fiber Optical amplifier
  • Access Network
Mechanical Specifications
Parameter 16 Channel CWDM Mux 16 Channel CWDM Demux
Operation Wavelength (nm) 1270~1610 or 1270~1611
Channel Spacing (nm) 20
Channel Passband (nm) ±6.5
Insertion Loss (dB) ≤3.5
Isolation (dB) Adjacent: >30 Non-adjacent: >40
Ripple(dB) <0.5
Insertion Loss Temperature Sensitivity (dB/℃) <0.5
Wavelength Temperature Shifting (nm/℃) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss(dB) >45
Maximum Power Handling (mW) 300
Operating Temperature (℃) -5~+75
Storage Temperature (℃) -40~+85
Fiber Type SMF-28e
Connector Type LC/PC or Customized
Package dimension (mm)(19" 1U rackmount) L200xW440xH44 or Customized
Ordering Information
CWDM Channel Spacing Number of Channels Configuration 1st Channel Fiber Type Fiber Length In/Out Connector
C=CWDM 16=16 Channel M=Mux
D=Demux		 13=1310nm
...
47=1470nm
49=1490nm
...
61=1610nm
SS=special		 1=Bare fiber
2=900um Loose tube
3=2mm Cable
4=3mm Cable		 1=1m
2=2m
S=Specify		 0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC
S=Specify
Packaging & Shipping

Packaging: Bags & carton box

Shipping Options: International Express: FedEx, DHL, UPS, TNT and EMS, or by sea. If you have another preferred carrier, please notify us in advance.

FedEx Overnight: 1-3 business days (weekends and holidays excepted)

DHL: 2-4 business days (weekends and holidays excepted). For Spain, Italy, Brazil and some other countries, items may take longer due to customs clearance.

Delivery & Payment Terms

Accepted Payment Methods: T/T, PAYPAL, WESTERN UNION, MONEY GRAM, L/C

Payment Terms: 30% deposit in advance, 70% balance paid before delivery
