16 Channels CWDM Module with Low Insertion Loss and 3 Meters Fiber Optic WDM

Brand Name:	New Light
Model Number:	LC UPC
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

Connector Type:

LC UPC

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

16 Channels CWDM Module With Fiber Optic LC UPC Single Mode 3 Meters

Supply Ability:

1000000

Highlight:

outdoor fiber termination box

wdm in optical fiber

Product Description

Single Mode Fiber Optic WDM 16 Channels CWDM Module 3 Meters Low Insertion Loss

16 Channels CWDM module with fiber optic LC UPC single mode 3 meters

Mechanical Specification

Parameter	Mux	Demux
Operation Wavelength (nm)	1270~1610 or 1270~1611
Channel Spacing (nm)	20
Channel Passband (nm)	±6.5
Insertion Loss (dB)	≤3.5
Isolation (dB)	Adjacent	>30
	Non-adjacent	>40
Ripple(dB)	<0.5
Insertion Loss Temperature Sensitivity (dB/℃)	<0.5
Wavelength Temperature Shifting (nm/℃)	<0.002
Polarization Dependent Loss (dB)	<0.1
Polarization Mode Dispersion	<0.1
Directivity (dB)	>50
Return Loss(dB)	>45
Maximum Power Handling (mW)	300
Operating Temperature (℃)	-5~+75
Storage Temperature (℃)	-40~+85
Fiber Type	SMF-28e
Connector Type	LC/PC or Customized
Package dimension (mm)(19" 1U rackmount)	L200xW440xH44 or Customized

Ordering Information

CWDM	Channel Spacing	Number of Channels	Configuration	1st Channel	Fiber Type	Fiber Length	In/Out Connector
C=CWDM	16=16 Channel	M=Mux D=Demux	13=1310nm … 47=1470nm 49=1490nm … 61=1610nm SS=special	1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable	1=1m 2=2m S=Specify	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC S=Specify

Product Overview

Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

Our CWDM products include: bare single CWDM device packed in glass tube or stainless steel tube, CWDM Mux Demux modules packed in ABS box up to 16-channel or even 18-channel Multiplexing on a single fiber or CWDM modules packed in standard 19" 1U rackmount. Due to the low insertion loss is needed in WDM networks, we can also add "Skip Component" in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: Glass tube, stainless steel tube, ABS box package, LGX package and 19" 1U rackmount.

Key Features

Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path

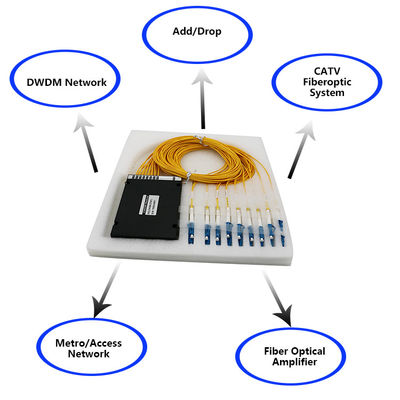

Applications

Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Access Network

Packaging & Shipping

Packaging

Bags & carton box

Shipping Options

International Express: FedEx, DHL, UPS, TNT and EMS, or by sea. If you have another preferred carrier, please notify us in advance.

FedEx Overnight: 1-3 business days for delivery (weekends and holidays excepted)

DHL: 2-4 business days for delivery (weekends and holidays excepted). For Spain, Italy, Brazil and some other countries, items may take longer due to customs clearance.

Delivery & Payment

Payment Methods

T/T, PAYPAL, WESTERN UNION, MONEY GRAM, L/C

Payment Terms

30% deposit in advance, 70% balance paid before delivery
