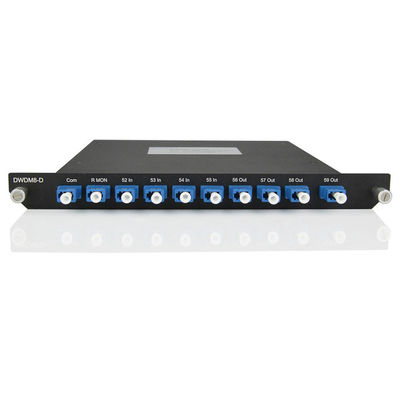

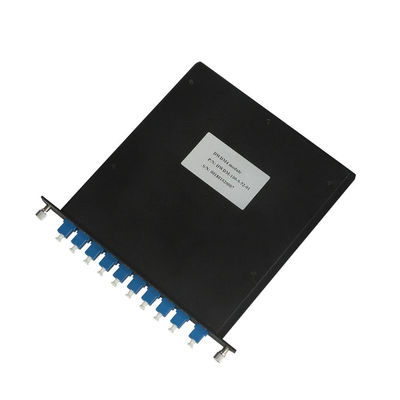

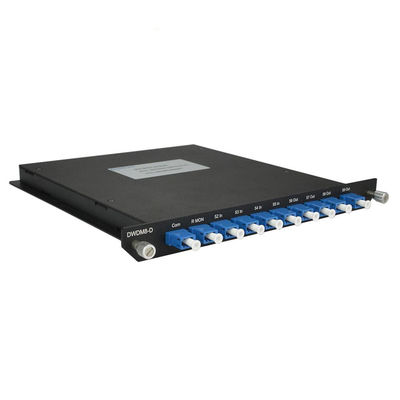

8 Channels LC UPC Connector Single Mode 1550nm DWDM Mux Demux Fiber Optic Module

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

LC UPC

OEM / ODM:

Acceptable

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

16 Channels CWDM Module With Fiber Optic LC UPC Single Mode 3 Meters

Mode Type:

Single Mode

Supply Ability:

1000000

Highlight:

outdoor fiber termination box

wdm in optical fiber

Product Description

DWDM Mux/Demux - 8 Channel LC UPC Single Mode

This 8-channel LC UPC connector single mode 1550nm direction fiber optic DWDM Mux/Demux utilizes dense wavelength division multiplexing technology for efficient uplink and downlink signal transmission.

Product Overview

Our dense wavelength division multiplexer (DWDM) is engineered with advanced membrane filter technology and proprietary non-flux metal bonding micro-optics packaging design. Operating within ITU wavelengths, it delivers superior performance with low insertion loss, high channel isolation, excellent thermal stability, and outstanding reliability for telecommunications network systems.

Technical Specifications

Parameter	4 Channel	8 Channel	16 Channel
Channel Wavelength (nm)	1270-1610
Center Wavelength Accuracy (nm)	±0.5
Channel Spacing (nm)	20
Insertion Loss (dB)	≤1.4	≤2.6	≤5.0
Channel Uniformity (dB)	≤0.5
Channel Ripple (dB)	0.3
Isolation - Adjacent (dB)	>30
Isolation - Non-adjacent (dB)	>40
Return Loss (dB)	>45
Maximum Power Handling (mW)	500
Operating Temperature (°C)	-5 to +75

Key Features

Low Insertion Loss
Wide Pass Band
High Channel Isolation
High Stability and Reliability
Epoxy-free Optical Path

Applications

Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical Amplifier
Access Network

Packaging & Shipping

Packaging: Bags & Carton Box

Shipping Options:

- International Express: FedEx, DHL, UPS, TNT, EMS, or by sea

- FedEx Overnight: 1-3 business days delivery

- DHL: 2-4 business days delivery (longer for Spain, Italy, Brazil due to customs)

Please notify us in advance if you have a preferred carrier.

Payment Terms

Accepted Methods: T/T, PAYPAL, Western Union, Money Gram, L/C

Payment Terms: 30% deposit in advance, 70% balance paid before delivery
