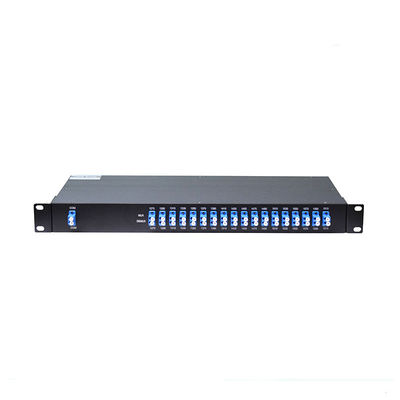

1U 19
  • name
  • name

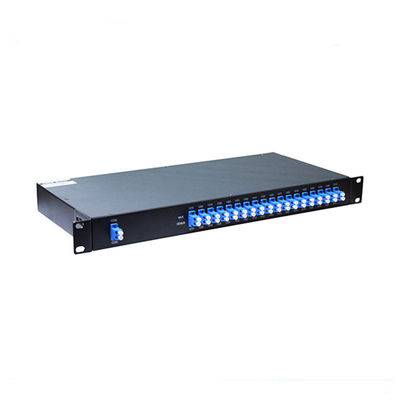

1U 19" Rack Mount CWDM Mux/Demux Module with 18 Channels 1270nm-1610nm Wavelength and LC/UPC Connector

Brand Name: New Light
Model Number: CWDM
MOQ: 1
Price: 1~30
Packaging Details: export packing
Payment Terms: L/C,T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Brand Name:
New Light
Connector Type:
LC UPC
OEM / ODM:
Acceptable
Warranty:
3 Years
Delivery Time:
2-10 Working Days After Receive Payment
Payment:
T/T , L/C , Paypal , Westen Union , Money Gram
Products Name:
16 Channels CWDM Module With Fiber Optic LC UPC Single Mode 3 Meters
Mode Type:
Single Mode
Supply Ability:
1000000
Highlight:

outdoor fiber termination box

,

wall mount fiber termination box

Product Description
1U 19" Rack Mount Fiber Optic WDM Dual Fiber LC/UPC Connector 1270nm-1610nm 18CH
1U 19" Rack Mount Dual Fiber LC/UPC Connector 1270nm-1610nm 18CH CWDM Mux+Demux Module CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offers high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm (1261nm-1611nm) which totally offers 18 channels with 20nm channel spacing.
Features
  • Low Insertion Loss
  • High Isolation
  • High Reliability and Stability
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
  • Wide Operating Temperature: -20 to +70℃
Applications
  • CWDM System
  • Add/Drop
  • PON Networks
  • CATV Links
Compliance
  • Telcordia GR-1209-CORE-2001
  • Telcordia GR-1221-CORE-1999
  • RoHS
Performance Specifications
Parameter 4 Channel 8 Channel 18 Channel
Mux | Demux Mux | Demux Mux | Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.2 ≤2.5 ≤3.8
Channel Uniformity (dB) ≤0.5 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A N/A N/A
Isolation (dB) Non-adjacent N/A N/A N/A
Insertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Operating Temperature (°C) -20~+70
Storage Temperature (°C) -40~85
Package dimension (mm) L100 x W80 x H10 or L140xW100xH15
Above specification are for device without connector.
Ordering Information
CWDM X XX X XX X X XX
Channel Spacing Number of Channels Configuration 1st Channel Fiber Type Fiber Length In/Out Connector
C=CWDM 16=16 Channel M=Mux D=Demux 13=1310nm … 47=1470nm 49=1490nm … 61=1610nm SS=special 1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable 1=1m 2=2m S=Specify 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC S=Specify
1U 19" Rack Mount CWDM Mux/Demux Module with 18 Channels 1270nm-1610nm Wavelength and LC/UPC Connector 0
Packaging & Shipping
Packaging: bags & carton box
  • Shipping: International Express: Fedex, DHL, UPS, TNT and EMS, or by sea. If you have another preferred carrier, please notify us in advance.
  • FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  • DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Delivery and Payment
1. T/T, PAYPAL, WESTERN UNION, MONEY GRAM, L/C.
2. 30% deposit in advance, 70% balance paid before delivery.
