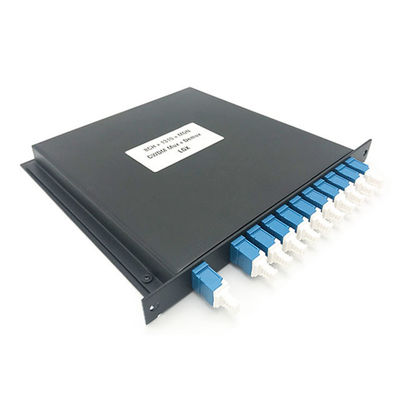

Hard Metal Case 8 Channel CWDM Mux Demux Module with Low Insertion Loss for Fiber Optic WDM

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

OEM / ODM:

Acceptable

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

Hard Metal Case Fiber Optic 8 Channel CWDM Mux + Demux Module With Connector

Mode Type:

Single Mode

Supply Ability:

1000000

Highlight:

outdoor fiber termination box

wdm in optical fiber

Product Description

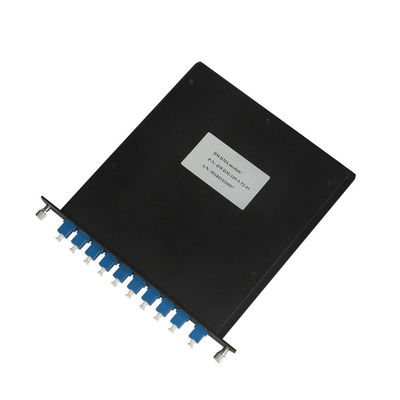

Hard Metal Case Fiber Optic Components 8 Channel CWDM Mux Demux Module With Connector

This hard metal case fiber optic 8 channel CWDM Mux + Demux Module comes pre-integrated with fiber optic adapters for immediate connectivity. Simply plug in the corresponding fiber optic patch cords to establish your network connection.

The LGX type CWDM Module supports LC, SC, FC, ST, or E2000 connectors and can be used as a standalone unit or installed in 1U, 2U, or 4U rack mounts for organized management. Both simplex and duplex CWDM multiplexer configurations are available.

Key Features

Low Insertion Loss
High Isolation
Low Polarization Dependent Loss (PDL)
Compact Design
Excellent channel-to-channel uniformity
Wide Operating Wavelength: 1260nm to 1620nm
Wide Operating Temperature: -40℃ to 85℃
High Reliability and Stability

Applications

CWDM Systems
Add/Drop Networks
PON Networks
CATV Links

Compliance Standards

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS Compliant

Performance Specifications

1 * N CWDM Mux/Demux Module

Parameter	4 Channel	8 Channel	18 Channel
Channel Wavelength (nm)	1270~1610
Center Wavelength Accuracy (nm)	±0.5
Channel Spacing (nm)	20
Channel Passband (@-0.5dB bandwidth (nm))	>13
Insertion Loss (dB)	≤1.2	≤2.5	≤3.8
Channel Uniformity (dB)	≤0.5	≤1.0	≤1.5
Channel Ripple (dB)	0.3
Isolation (dB) - Adjacent	N/A	>30	N/A
Isolation (dB) - Non-adjacent	N/A	>40	N/A
Insertion Loss Temperature Sensitivity (dB/°C)	<0.005
Wavelength Temperature Shifting (nm/°C)	<0.002
Polarization Dependent Loss (dB)	<0.1
Polarization Mode Dispersion	<0.1
Directivity (dB)	>50
Return Loss (dB)	>45
Maximum Power Handling (mW)	300
Operating Temperature (°C)	-20~+70
Storage Temperature (°C)	-40~85
Package Dimension (mm)	L100 x W80 x H10 or L140xW100xH15

*Above specifications are for device without connector.

Ordering Information

CWDM	Channel Spacing	Number of Channels	Configuration	1st Channel	Fiber Type	Fiber Length	In/Out Connector
C=CWDM	16=16 Channel	M=Mux D=Demux	13=1310nm … 47=1470nm 49=1490nm … 61=1610nm SS=special	1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable	1=1m 2=2m S=Specify	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC S=Specify

Packaging & Shipping

Packaging: Bags & carton box
Shipping: International Express via FedEx, DHL, UPS, TNT and EMS, by air or by sea. Please notify us in advance if you have a preferred carrier.

Delivery and Payment Terms

1. Payment Methods: T/T, PayPal, Western Union, Money Gram, L/C
2. Payment Terms: 30% deposit in advance, 70% balance paid before delivery
