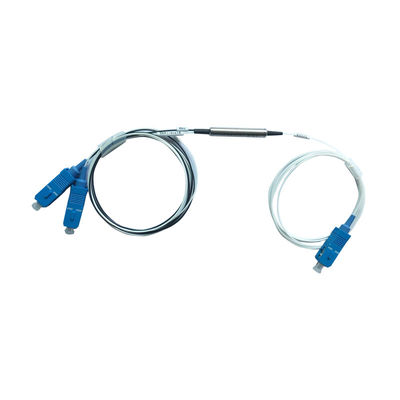

FTTX 3 Ports Fiber Optic WDM Module FWDM with 1310nm 1490nm 1550nm Wavelengths for Low Insertion Loss and High Channel Isolation

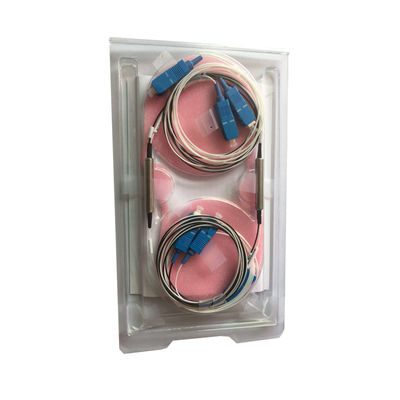

  • name

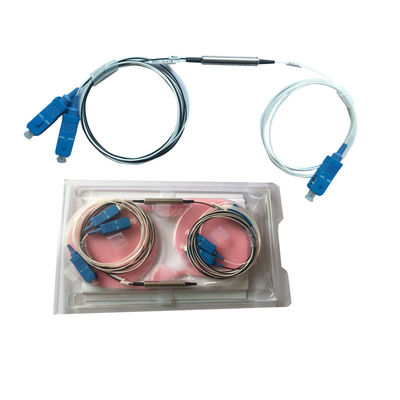

  • name
  • name

FTTX 3 Ports Fiber Optic WDM Module FWDM with 1310nm 1490nm 1550nm Wavelengths for Low Insertion Loss and High Channel Isolation

Brand Name: NEW LIGHT
Model Number: FWDM
MOQ: 1
Price: 1~30
Packaging Details: export packing
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Model Number:
1310/1550 Nm FWDM
Feature:
Wide Wavelength Range
Applications:
System Monitoring
Pass Band Wavelength Range:
1260 ~ 1360
Reflection Band Wavelength Range:
1460~1620
Insertion Loss:
Pass Channel≤0.8
Channel Ripple:
<0.3
Isolation:
Pass Channel>40
Insertion Loss Temperature Sensitivity:
<0.005
Polarization Dependent Loss:
<0.1
Polarization Mode Dispersion:
<0.1
Directivity:
>50
Supply Ability:
1000000
Highlight:

outdoor fiber termination box

,

wall mount fiber termination box

Product Description
FTTX 3 Ports Fiber Optic WDM Module
FWDM 1310nm 1490nm 1550nm Optical Filter

Micro-Optical WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy-free optical path.
Key Features
  • Wide Operating Wavelength Range
  • Low Insertion Loss
  • Ultra Flat Wide Passband
  • High Channel Isolation
  • High Stability and Reliability
  • Epoxy-free Optical Path
Applications
  • Testing Instruments
  • FTTH Tri-Play System
  • CATV Link
  • WDM System
  • PON Networks
Technical Specifications
Parameter Description Min Typical Max Unit
Operating Temperature 0 30 70 ℃
Operating Relative Humidity Not condensing 5 95 %
Storage Temperature Not condensing -40 85 ℃
Power Handling 50 Mw
COM Port Wavelength Range 1260 1560 nm
TRANS Port Wavelength CATV 1540 1550 1560 nm
REFL Port Wavelength 1 DATA upstream 1260 1310 1360 nm
REFL Port Wavelength 2 DATA downstream 1480 1490 1500 nm
Insertion Loss (excl. connector) COM to TRANS 0.3 0.5 dB
Insertion Loss (excl. connector) COM to REFL 0.25 0.4 dB
Isolation COM to TRANS@1490nm±10nm 1490nm into CATV port 15
Isolation COM to REFL@1550nm±10nm 1550nm into DATA port 15
Directivity 1310nm into CATV port 47
Return Loss (all ports) 45
Insertion Loss Thermal Sensitivity 0.005 dB/℃
Polarization Dependent Loss 0.1 dB
Bending Loss @1550nm@10mm radius,1 turn 0.5 dB
Fiber Type Corning® SMF-28 Ultra; 900um loose tube
Fiber Length COM 51 cm
TRANS 100 cm
REFL 100 cm
Connector Type COM SC/APC
TRANS without connector
REFL without connector
WDM Packaging Tube Length 38 39 mm
WDM Packaging Tube Diameter 5.5 6 mm
WDM Tube Electrical Isolation The metal tube must be electrically isolated by means of shrink wrap covering tube over its full length
*Insertion loss excluding connector loss.
Quality Control
We have a team of professional technicians to ensure the stability of each batch of products. Quality is fundamental to our enterprise's survival.
FTTX 3 Ports Fiber Optic WDM Module FWDM with 1310nm 1490nm 1550nm Wavelengths for Low Insertion Loss and High Channel Isolation 0 FTTX 3 Ports Fiber Optic WDM Module FWDM with 1310nm 1490nm 1550nm Wavelengths for Low Insertion Loss and High Channel Isolation 1
