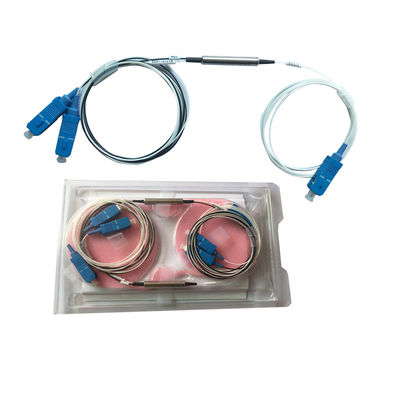

Low Insertion Loss FWDM Fiber Optic WDM with Wide Wavelength Range and High Channel Isolation

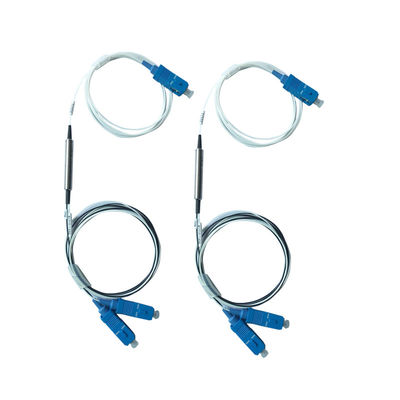

  • name

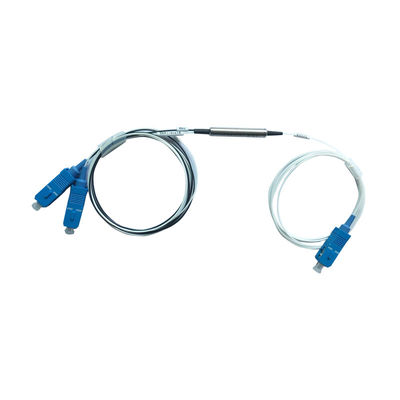

  • name
  • name
  • name

Low Insertion Loss FWDM Fiber Optic WDM with Wide Wavelength Range and High Channel Isolation

Brand Name: NEW LIGHT
Model Number: FWDM
MOQ: 1
Price: 1~30
Packaging Details: export packing
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Model Number:
1310/1550 Nm FWDM
Feature:
Wide Wavelength Range
Applications:
System Monitoring
Pass Band Wavelength Range:
1260 ~ 1360
Reflection Band Wavelength Range:
1460~1620
Insertion Loss:
Pass Channel≤0.8
Channel Ripple:
<0.3
Isolation:
Pass Channel>40
Insertion Loss Temperature Sensitivity:
<0.005
Polarization Dependent Loss:
<0.1
Polarization Mode Dispersion:
<0.1
Directivity:
>50
Supply Ability:
1000000
Highlight:

outdoor fiber termination box

,

wall mount fiber termination box

Product Description
Low Insertion Loss WDM Components
1310nm 1490nm 1550nm Fiber Optic WDM Optical Filter 1 x 2 Steel 0.9mm Tube
Product Features
  • Wide Operating Wavelength Range
  • Low Insertion Loss
  • Ultra Flat Wide Passband
  • High Channel Isolation
  • High Stability and Reliability
  • Epoxy-free on Optical Path
This 1310nm/1490nm/1550nm Optical Filter 1 x 2 FWDM CWDM DWDM fiber optic WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy-free optical path.
Low Insertion Loss FWDM Fiber Optic WDM with Wide Wavelength Range and High Channel Isolation 0 Low Insertion Loss FWDM Fiber Optic WDM with Wide Wavelength Range and High Channel Isolation 1
Technical Specifications
Parameter Description Min Typical Max Unit
Operating Temperature 0 30 70 ℃
Operating Relative Humidity Not condensing 5 95 %
Storage Temperature Not condensing -40 85 ℃
Power Handling 50 Mw
COM Port Wavelength Range 1260 1560 nm
TRANS Port Wavelength CATV 1540 1550 1560 nm
REFL Port Wavelength 1 DATA upstream 1260 1310 1360 nm
REFL Port Wavelength 2 DATA downstream 1480 1490 1500 nm
Insertion Loss (excl. optical connector) COM to TRANS 0.3 0.5 dB
Insertion Loss (excl. optical connector) COM to REFL 0.25 0.4 dB
Isolation COM to TRANS@1490nm±10nm 1490nm into CATV port 15
Isolation COM to REFL@1550nm±10nm 1550nm into DATA port 15
Directivity 1310nm into CATV port 47
Return Loss (all ports) 45
Insertion Loss Thermal Sensitivity 0.005 dB/℃
Polarization Dependent Loss 0.1 dB
Bending Loss @1550nm@10mm radius,1 turn 0.5 dB
Fiber Type Corning® SMF-28 Ultra; 900um loose tube
Fiber Length COM 51 cm
Fiber Length TRANS 100 cm
Fiber Length REFL 100 cm
Connector Type COM SC/APC
Connector Type TRANS without connector
Connector Type REFL without connector
WDM Packaging Tube Length 38 39 mm
WDM Packaging Tube Diameter 5.5 6 mm
WDM Tube Electrical Isolation The metal tube must be electrically isolated by means of shrink wrap covering tube over its full length
*Insertion loss excluding connector loss.
Applications
  • WDM system
  • CATV system
  • Telecommunication network system
  • Metro/Access networks
  • EDFA
  • Fiber optic instruments
  • Transmitters and fiber lasers
  • Single direction/Bi-direction transmission
  • Line monitoring
  • FTTX
Low Insertion Loss FWDM Fiber Optic WDM with Wide Wavelength Range and High Channel Isolation 2
