1.2 Meter G657A2 Fiber Optic FWDM with 1310/1550 nm Wavelength and Low Insertion Loss for System Monitoring
  • name
  • name
  • name

1.2 Meter G657A2 Fiber Optic FWDM with 1310/1550 nm Wavelength and Low Insertion Loss for System Monitoring

Brand Name: NEW LIGHT
Model Number: FWDM
MOQ: 1
Price: 1~30
Packaging Details: export packing
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Model Number:
1310/1550 Nm FWDM
Feature:
Wide Wavelength Range
Applications:
System Monitoring
Pass Band Wavelength Range:
1260 ~ 1360
Reflection Band Wavelength Range:
1460~1620
Insertion Loss:
Pass Channel≤0.8
Channel Ripple:
<0.3
Isolation:
Pass Channel>40
Insertion Loss Temperature Sensitivity:
<0.005
Polarization Dependent Loss:
<0.1
Polarization Mode Dispersion:
<0.1
Directivity:
>50
Supply Ability:
1000000
Highlight:

outdoor fiber termination box

,

wall mount fiber termination box

Product Description

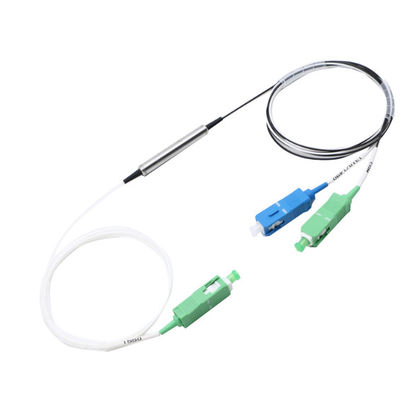

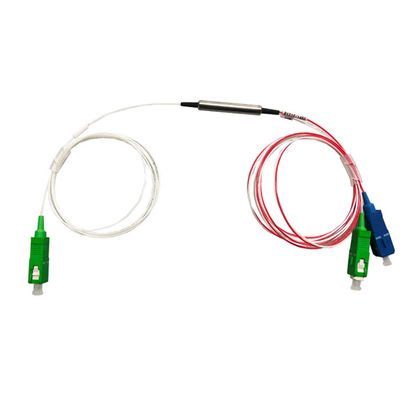

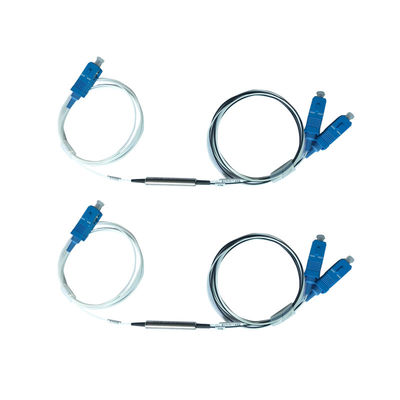

1.2 Meter G657A2 0.9mm Steel Tube / ABS Fiber Optic Filter FWDM 1 X 2 SC UPC Connector
This 1.2 meter fiber optic Filter FWDM (Filter Wavelength Division Multiplexer) utilizes advanced thin film coating technology and proprietary non-flux metal bonding micro optics packaging. The design provides exceptional performance with low insertion loss, high channel isolation, low temperature sensitivity, and an epoxy-free optical path.
1.2 Meter G657A2 Fiber Optic FWDM with 1310/1550 nm Wavelength and Low Insertion Loss for System Monitoring 0 1.2 Meter G657A2 Fiber Optic FWDM with 1310/1550 nm Wavelength and Low Insertion Loss for System Monitoring 1 1.2 Meter G657A2 Fiber Optic FWDM with 1310/1550 nm Wavelength and Low Insertion Loss for System Monitoring 2
Key Features
Wide Operating Wavelength Range
Low Insertion Loss
Ultra Flat Wide Passband
High Channel Isolation
High Stability and Reliability
Epoxy-free Optical Path
Technical Specifications
Parameter Condition Min Typical Max Unit
Operating Temperature 0 30 70 ℃
Operating Relative Humidity Not condensing 5 95 %
Storage Temperature Not condensing -40 85 ℃
Power Handling 50 Mw
COM Port Wavelength Range 1260 1560 nm
TRANS Port Wavelength CATV 1540 1550 1560 nm
REFL Port Wavelength 1 DATA upstream 1260 1310 1360 nm
REFL Port Wavelength 2 DATA downstream 1480 1490 1500 nm
Insertion Loss (excl. connector) COM to TRANS 0.3 0.5 dB
Insertion Loss (excl. connector) COM to REFL 0.25 0.4 dB
Isolation COM to TRANS 1490nm into CATV port 15
Isolation COM to REFL 1550nm into DATA port 15
Directivity 1310nm into CATV port 47
Return Loss (all ports) 45
Insertion Loss Thermal Sensitivity 0.005 dB/℃
Polarization Dependent Loss 0.1 dB
Bending Loss @1550nm@10mm radius,1 turn 0.5 dB
Fiber Type Corning® SMF-28 Ultra; 900um loose tube
Fiber Length COM 51 cm
Fiber Length TRANS 100 cm
Fiber Length REFL 100 cm
Connector Type COM SC/APC
Connector Type TRANS without connector
Connector Type REFL without connector
WDM Packaging Tube Length 38 39 mm
WDM Packaging Tube Diameter 5.5 6 mm
WDM Tube Electrical Isolation The metal tube must be electrically isolated by means of shrink wrap covering tube over its full length
*Insertion loss excluding connector loss.
Applications
WDM System
CATV System
Telecommunication Network System
Metro/Access Networks
EDFA
Fiber Optic Instruments
Transmitters and Fiber Lasers
Single Direction/Bi-direction Transmission
Line Monitoring
FTTX
1.2 Meter G657A2 Fiber Optic FWDM with 1310/1550 nm Wavelength and Low Insertion Loss for System Monitoring 3
